Solpod Mini

Flush, Single Tilt & Dual Tilt Solar

Solpod’s Versatile Solpod Mini suits any rooftop, with just three brackets.

Solpod Mini is our rail-based rooftop solar solution.  Solpod Mini is offered in flush mount, single orientation tilt or back-to-back tilt.  Smaller than the larger Solpod solar pods, the Solpod Mini series is suitable for any roof.

Ideal for commercial format modules, approximately 2 m x 1 m, with frame heights of 35mm or 40mm.

  • Fast installation;
  • Best Practice Occupational Health and Safety, with a ‘no reach’ assembly method;
  • Low wind loads.  Wind tunnel testing shows the back-to-back geometry of Solpod Mini delivers wind loads less than those defined by the Australian Standard for standard solarr;
  • On site assemblage;
  • Uses a Solpod channel for cable management and array earthing;
  • 10-year warranty;
  • 25+ year service life.

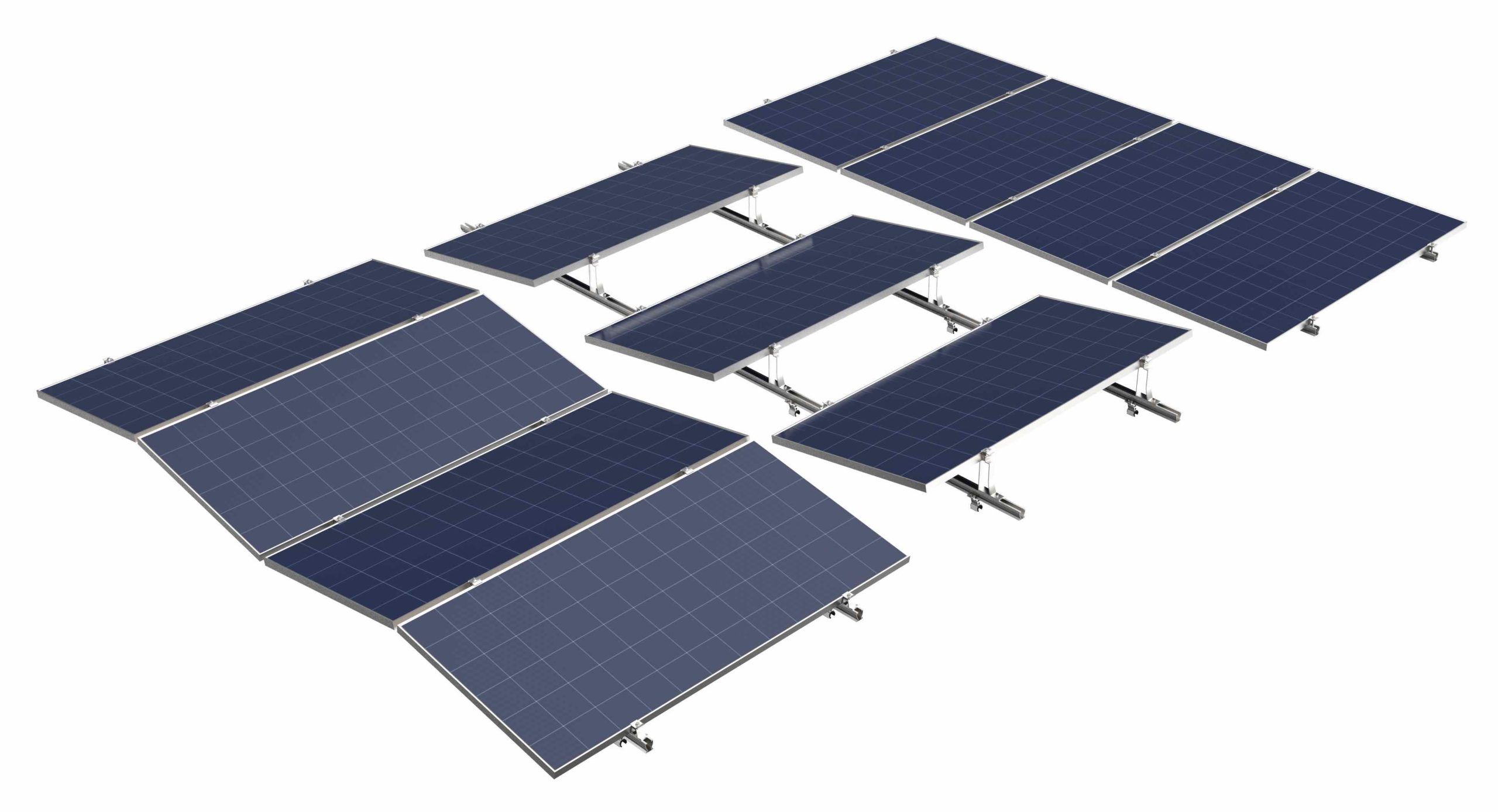

Solpod Mini uses just three brackets to suit flush, single tilt or dual tilt.

The below image depicts the Mini in a flush mounting option.

Find out more information in our product brochure: Solpod Mini


Mini Series Orientation Options

The Mini Series can be installed in landscape ‘columns’ that proceed from gutter to roof ridge; or portrait ‘rows’ that proceed from side to side.

The default method is in landscape ‘columns’, where the fixing spacing is equal to the purlin spacing.  Each column of models is fixed to two channels using edge and centre bracket that include the modules at 10 degrees.  Electrical cables can run in the channels.

See below images for a visual depiction of the orientation options of the Solpod Mini:


Solpod Mini Series Demonstration Videos

Jeremy Lawrence, Engineering Manager at Solpod, provides an explanation of the technology and application of the Solpod Mini.
